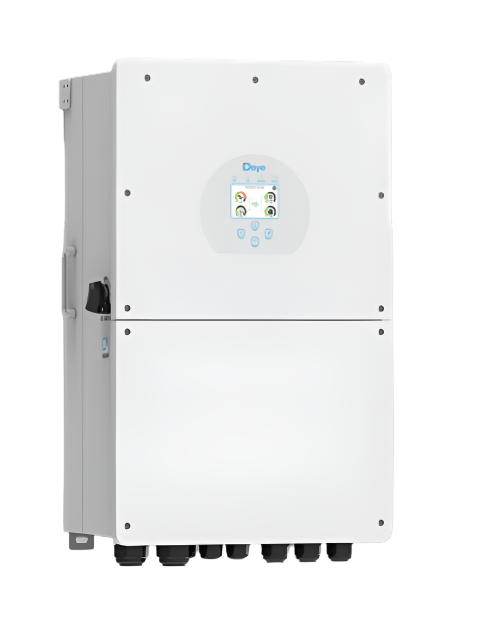

⚡ Deye 12kW 48VDC Single-Phase Hybrid Inverter – High Power, 48V Compatible

The Deye SUN-12K-SG01LP1-EU is a powerful single-phase hybrid inverter designed to support large residential and small commercial energy systems running on 48VDC battery banks. Offering a high 12kW output, ultra-fast 240A charge/discharge rates, and seamless integration of solar, battery, grid, and generator, it’s the ultimate upgrade for users demanding serious backup and solar capacity.

⚡ Key Features & Benefits:

• ✅ High Output: 12kW Single-Phase

Power-hungry homes or businesses with robust and reliable off-grid or hybrid performance.

• ✅ 48V Battery Compatible

Ideal for popular low-voltage lithium or lead-acid battery banks — including modular 5.12kWh and 10.65kWh packs.

• ✅ 240A Max Charge/Discharge

Handles high-demand loads and recharges batteries faster than typical hybrid units.

• ✅ Off-Grid Ready with Generator Support

Seamlessly integrates grid, solar, genset, and battery power with UPS-level switchover times.

• ✅ Flexible & Expandable

Up to 16 units parallel for systems up to 192kW — supports unbalanced 3-phase setups.

• ✅ Smart Monitoring & Management

Includes LCD display, RS485 / CAN communication, and options for WiFi remote monitoring.

• ✅ Built for Harsh Conditions

IP65 rating for indoor or outdoor mounting — dust-tight and weather-resistant.

🧰 Technical Specifications:

Model SUN-12K-SG01LP1-EU

Rated Output Power 12,000W

Max AC Output Power 13,200W

Battery Voltage Range 40V – 60V

Max Charge/Discharge Current 240A

Max PV Input Power 15,600W

Rated PV Voltage 360V

MPPT Voltage Range 150 – 425V

MPPT Trackers / Strings 3 / 6

Off-Grid Surge Power 2× rated power (10s)

Parallel Support Up to 16 units

Communication RS485 / CAN

Monitoring LCD Display + Optional WiFi

Dimensions (W × H × D) 422 × 699.3 × 279 mm

Weight 33.6kg

IP Rating IP65 (indoor/outdoor)

Certifications CE, IEC 62109-1/2, G98/G99, NRS097

Warranty 5 Years

💡 Ideal For:

• Large off-grid or hybrid home systems

• Backup-heavy residential setups

• 48V-compatible battery storage

• Farms, offices, and rural applications

🔌 Big Power. Low Voltage. Maximum Flexibility.

The Deye 12kW 48V Hybrid Inverter is a game-changer for users needing high-output, smart energy control with battery and solar synergy. Add it to your energy arsenal today.
