⚡ Deye 20kW High Voltage 3-Phase Hybrid Inverter – Commercial-Grade Power, Smart Control

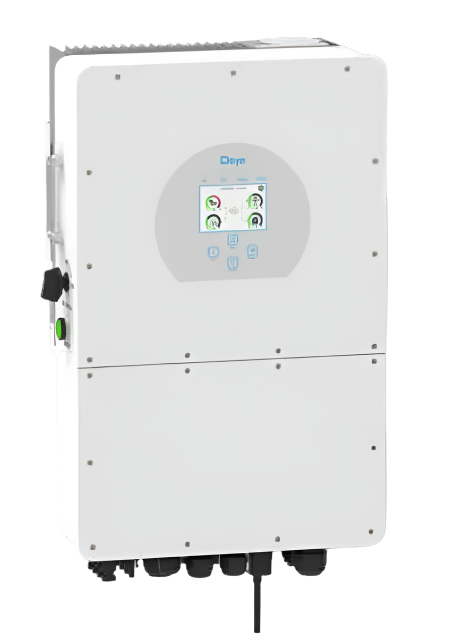

The Deye SUN-20K-SG01HP3-EU-AM2 is a high-voltage 20kW hybrid inverter designed for three-phase commercial and industrial applications. Built for performance and scalability, this unit integrates solar, grid, generator, and battery sources while supporting up to 130A charge/discharge current, making it a top choice for large hybrid energy systems.

Its high-voltage battery support (160–700V) ensures greater efficiency and is ideal for pairing with Deye’s BOS-G rack batteries and other HV storage systems.

⚡ Key Features & Benefits:

• ✅ 20kW 3-Phase Output

Powers commercial buildings, farms, and multi-phase residential sites with ease.

• ✅ High Voltage Battery Support

Operates with batteries in the 160V–700V range — optimised for rack-mounted HV lithium systems.

• ✅ 130A Max Charge/Discharge Rate

Fast battery charging and stable power output even under heavy loads.

• ✅ Built-In 10ms UPS Switching

Seamless transition from grid to battery backup during outages.

• ✅ PV + Battery + Grid + Genset Compatible

True hybrid power control with AC- and DC-coupled storage support.

• ✅ Smart Load Prioritisation

6 programmable time periods for charging/discharging and advanced energy flow control.

• ✅ Remote Monitoring & Parallel Ready

Expandable system with RS485/CAN and optional WiFi/GPRS for remote access.

🧰 Technical Specifications:

Model SUN-20K-SG01HP3-EU-AM2

Rated Power 20,000W

Max AC Output Power 22,000W

Battery Voltage Range 160V – 700V

Max Charge/Discharge Current 130A

Max PV Input Power 26,000W

Rated PV Voltage 600V

MPPT Voltage Range 200 – 800V

MPPT Trackers / Strings 2 MPPTs / 3 Strings

Surge Capacity 2× rated for 10 seconds

Operating Temp -25°C to 60°C

Cooling Method Internal smart cooling

Noise <45 dB

Dimensions (W × H × D) 610 × 700 × 275 mm

Weight 45kg

Protection Rating IP65

Communication RS485 / CAN / Optional WiFi

Certifications IEC62109-1/2, G98/G99, VDE4105

Warranty 5 Years

💡 Ideal For:

• Medium to large commercial buildings

• High-demand 3-phase homes and lodges

• Agricultural and off-grid hybrid projects

• Grid-tied systems with battery storage

🔌 Professional-Grade Energy Control Starts Here

The Deye 20kW HV Hybrid Inverter is ready to take your power system to the next level — smart, scalable, and serious about performance. Get in touch or order today.
