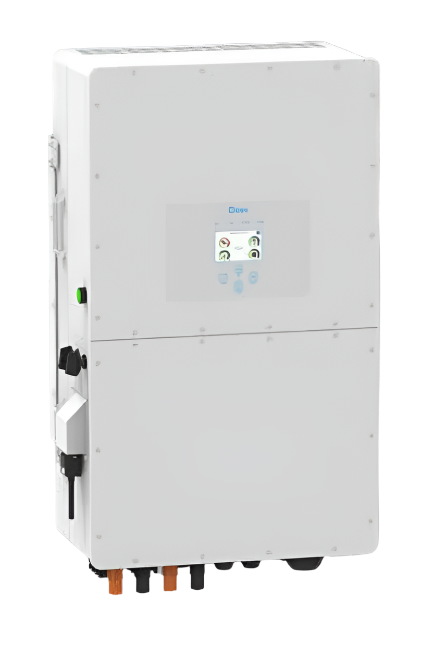

⚡ Deye 30kW 3-Phase Hybrid Inverter – High Voltage Powerhouse for Commercial Solar + Storage

The Deye SUN-30K-SG01HP3-EU-AM2 is a high-performance 30kW hybrid inverter built for three-phase commercial and industrial energy systems. It integrates solar, grid, generator, and high-voltage battery storage, making it a robust all-rounder for hybrid or off-grid projects.

With dual MPPTs, 4-string inputs, 700V battery compatibility, and 130A charge/discharge power, this inverter handles demanding loads, fast battery cycles, and real-time energy management — all in a rugged IP65-rated enclosure.

⚡ Key Features & Benefits:

• ✅ 30kW 3-Phase Hybrid Output

Powers factories, estates, farms, and complex energy systems — all under one inverter.

• ✅ HV Battery Ready (160–700V)

Supports high-voltage battery systems like Deye BOS-G racks with up to 130A throughput.

• ✅ Solar, Battery, Grid + Genset Integration

Flexible input sources for full energy control — AC- and DC-coupled compatible.

• ✅ Massive PV Input Support

Up to 39kW PV with dual MPPTs and smart string design for optimised solar production.

• ✅ Seamless Off-Grid Switching

10ms UPS-level switch time keeps mission-critical loads running through blackouts.

• ✅ Parallel System Ready

Can run with other units in parallel to scale up for large energy deployments.

• ✅ Remote Monitoring + Smart Energy Scheduling

Load shifting, time-of-use charging, WiFi/GPRS optional — full command at your fingertips.

🧰 Technical Specifications:

Model SUN-30K-SG01HP3-EU-AM2

Rated Output Power 30,000W

Max AC Output Power 33,000W

Battery Voltage Range 160V – 700V

Max Charge/Discharge Current 130A

Max PV Input Power 39,000W

Rated PV Voltage 600V

MPPT Voltage Range 200 – 800V

MPPTs / Strings 2 / 4

Surge Power 2× rated power (10s)

Parallel Support Yes

Communication RS485 / CAN / WiFi (optional)

Cooling Smart fan cooling

Noise <45 dB

Dimensions (W × H × D) 650 × 700 × 310 mm

Weight 60kg

IP Rating IP65

Certifications IEC 62109-1/2, G98, G99, VDE4105

Warranty 5 Years

💡 Ideal For:

• Medium to large-scale commercial energy systems

• Agriculture & food processing operations

• Estate and campus-level backup systems

• Smart hybrid installations with time-of-use optimisation

🔌 Heavy Duty. Smart Control. Built to Scale.

The Deye 30kW Hybrid Inverter is ready to power your next-level hybrid or off-grid solution. Order now, or connect with us for a full design + installation solution.
