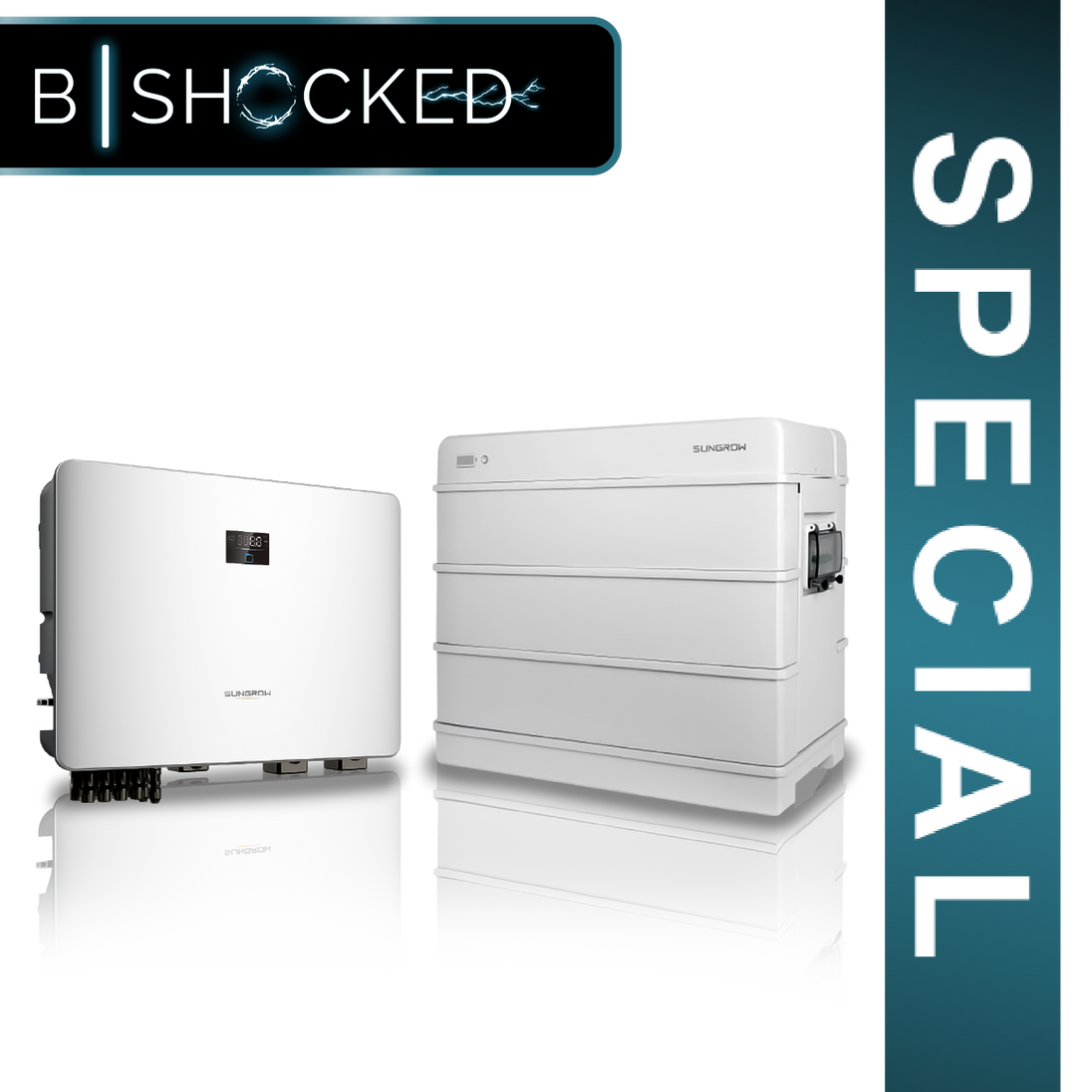

Sungrow High Voltage LFP Battery System (10kW+9.6kWh)

Elevate your energy solution with the Sungrow High Voltage LFP Battery System, featuring state-of-the-art lithium iron phosphate technology. This system is designed to deliver exceptional performance, flexibility, and safety for a wide range of applications.

Key Features:

• High-Performance: Experience up to 30A of continuous charging and discharging current, ensuring high efficiency and up to 100% usable energy.
• Flexible Configuration: The system's modularity allows for extension during its lifetime, supporting 3-8 modules per unit with a maximum of 4 units in parallel, offering a capacity range of 9–100 kWh.
• Uncompromised Safety: Built with lithium iron phosphate cells, the battery includes multi-stage protection designs and has undergone extensive safety certification to ensure reliable operation.
• Simplified Installation: Designed for ease, the compact and lightweight system allows for single-person installation. The plug-and-play setup requires no cables between battery modules, simplifying the process.
• Robust Specifications:
  • Energy Storage: 9.6kWh for a single module configuration, expandable based on system requirements.
  • Voltage and Power: 192V nominal voltage with a rated DC power output of 5.76kW.
  • Operational Efficiency: Operates within a voltage range of 150–219V, with a maximum charging/discharging current of 30A.
• Durable and Reliable: Engineered for both indoor and outdoor applications, with a temperature operating range of 0 to 50°C for charging and -20 to 50°C for discharging, encapsulated within an IP55-rated enclosure for dust and water resistance.
• Longevity: Backed by a 10-year warranty, ensuring a long service life and peace of mind.
• Weight : 154kgs.
• Size : 123 x 98 x 51.1 cm.

Ideal for residential, commercial, and utility applications, the Sungrow High Voltage LFP Battery System is your solution for advanced energy storage, offering scalability, safety, and ease of use
