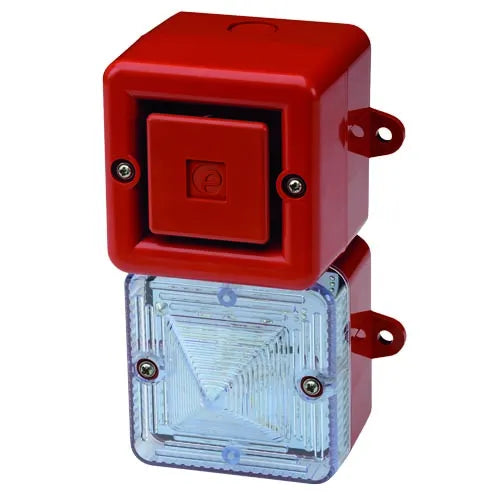

ECY3R03 – E2S AL100 Combo Unit (24V AC / 48V DC | 104dB Sounder + Xenon Beacon)

The ECY3R03 is a dual-voltage audio-visual signalling combo designed for systems running on either 24V AC or 48V DC. Combining an A100 series 104dB sounder with a high-intensity Xenon beacon, this compact unit delivers both audible and visual alerts from a single IP65-rated enclosure — ideal for control systems, machinery alerts, and safety notification points.

With 32 selectable tones, 3-stage alarm capability, and colour options for the beacon lens, the ECY3R03 gives you serious performance in a compact, reliable package.

⚡ Key Benefits:

• Dual-voltage input (24V AC / 48V DC) – perfect for hybrid systems and flexible installations

• 104dB audio output + Xenon visual flash – instant, high-impact alerts

• Space-saving combo unit – reduces wiring and simplifies installation

• 32 tones / 3-stage alarm – easily tailored for multi-alert functionality

• IP65-rated housing – built for harsh, dusty, or outdoor conditions

• Colour customisation – choose from Red, Amber, Blue, Green, or Clear lenses

🔧 Technical Specifications:

• Model Code: ECY3R03

• Voltage: 24V AC or 48V DC

• Sound Output: 104dB @ 1m

• Beacon Type: Xenon strobe

• Tone Options: 32

• Alarm Stages: 3

• Lens Colours: R, A, B, G, C

• Ingress Protection: IP65

• Material: UV-stabilised polycarbonate

• Mounting: Surface-mounted (optional bracket available)

• Operating Temp: -25°C to +55°C

🛠 Ideal For:

• Industrial control cabinets

• Access control & entry point alerting

• Process automation systems

• Machinery fault or status indication

• Safety alerting in hybrid AC/DC networks

🌈 Don’t forget to select your lens colour when ordering. Compatible with right-angle bracket for angled installs.

🛒 One unit. Two voltages. Total coverage. Add the ECY3R03 to your signalling system for flexible, full-spectrum alerting across AC or DC-powered zones.
