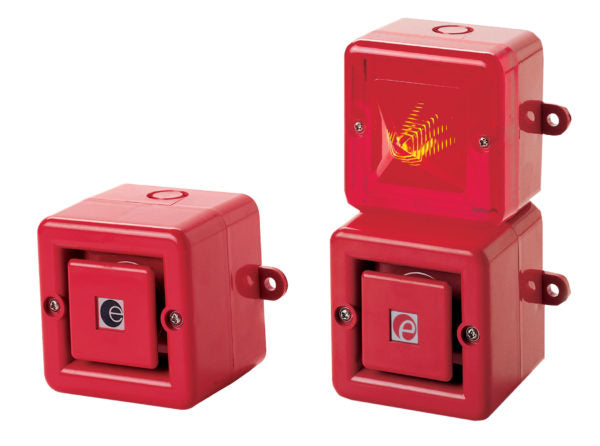

ECY3R01 – E2S AL100 Combo Unit (12V / 24V DC | 104dB Sounder + Xenon Beacon)

The ECY3R01 is a compact, all-in-one audio-visual alert unit combining an E2S A100 sounder and a powerful Xenon beacon into one streamlined device. Designed for 12V or 24V DC systems, this unit delivers a clear 104dB sound output and intense Xenon flash, making it ideal for security systems, process alarms, access control, and small-scale evacuation alerts.

With 32 tones, 3-stage alarms, and an IP65-rated enclosure, the AL100 combo delivers big performance in a small footprint.

⚡ Key Benefits:

• Combo unit = space-saving solution – sounder and beacon in one enclosure

• 104dB audio alert + Xenon visual signal – covers both sound and sight

• 12V or 24V DC operation – ideal for control panels, alarm systems, and battery-backed setups

• 32 tone options / 3 alarm stages – configurable to your specific alert needs

• IP65 rated – weather-resistant and suitable for outdoor/industrial use

• Multiple colour options – available in Red, Amber, Blue, Green, Clear

🔧 Technical Specifications:

• Model Code: ECY3R01

• Voltage: 12V / 24V DC

• Sound Output: 104dB @ 1m

• Beacon Type: Xenon strobe

• Tone Options: 32

• Alarm Stages: 3

• Lens Colours Available: R, A, B, G, C

• Ingress Protection: IP65

• Material: UV-stabilised polycarbonate

• Mounting: Surface mount (right-angle bracket optional)

• Operating Temp: -25°C to +55°C

🛠 Perfect For:

• Access control & security alerts

• Fire panel annunciation (DC systems)

• Equipment status alarms

• Small warehouses and commercial zones

• Power-restricted or battery backup systems

🌈 Please specify lens colour at checkout. Matching bracket available for angled mounting.

🛒 Dual alerting. Single solution. Add the ECY3R01 combo to your system today for compact, cost-effective sound and light signalling that gets noticed.
