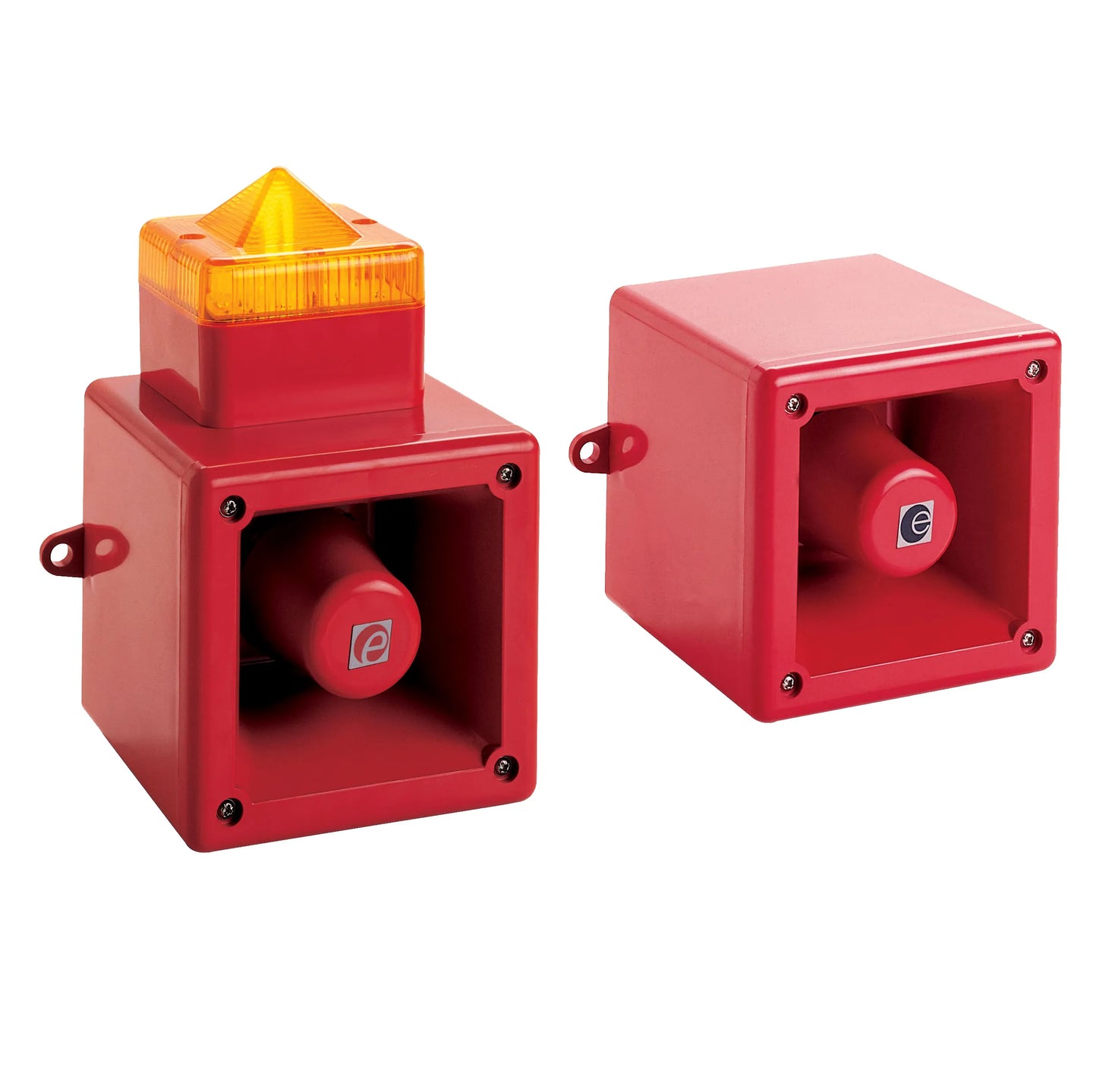

ECY8R01 – E2S AL112 Combo Unit (12V / 24V DC | 119dB Sounder + Xenon Beacon)

The ECY8R01 is a high-output audio-visual combo that pairs the thunderous 119dB A112 sounder with a brilliant Xenon beacon, all in one rugged, compact housing. Built for 12V or 24V DC systems, this combo is ideal for evacuation alerts, machinery faults, and high-risk zone warnings — anywhere that loud, visible alerts are critical to safety.

With 45 tone options, 3 alarm stages, and IP65-rated protection, the ECY8R01 delivers uncompromising performance in demanding environments.

⚡ Key Benefits:

• Extremely loud 119dB output – suitable for noisy plants, warehouses, and outdoor use

• 12V / 24V DC input – integrates easily into low-voltage and battery-powered systems

• Xenon beacon with high-intensity flash – maximises visual attention

• 45 selectable tones / 3-stage alerts – tailored for layered or prioritised warnings

• Weatherproof and impact-resistant (IP65) – dependable in any industrial setting

• Custom lens colours – Red, Amber, Blue, Green, or Clear

🔧 Technical Specifications:

• Model Code: ECY8R01

• Voltage: 12V or 24V DC

• Sound Output: 119dB @ 1m

• Beacon Type: Xenon strobe

• Tone Options: 45

• Alarm Stages: 3

• Lens Colours: R, A, B, G, C

• Ingress Protection: IP65

• Material: UV-stabilised polycarbonate

• Mounting: Surface-mount (angle bracket optional)

• Operating Temp: -25°C to +55°C

🛠 Ideal For:

• Large industrial plant evacuation

• Outdoor area alerts and perimeter security

• High-decibel manufacturing zones

• Fire alarm and emergency systems

• Critical DC-powered safety systems

🌈 Don’t forget to specify lens colour at checkout. Compatible with standard mounting accessories.

🛒 Command attention with 119dB. Add the ECY8R01 to your DC system today and deploy powerful sound + light signalling where it counts most.
