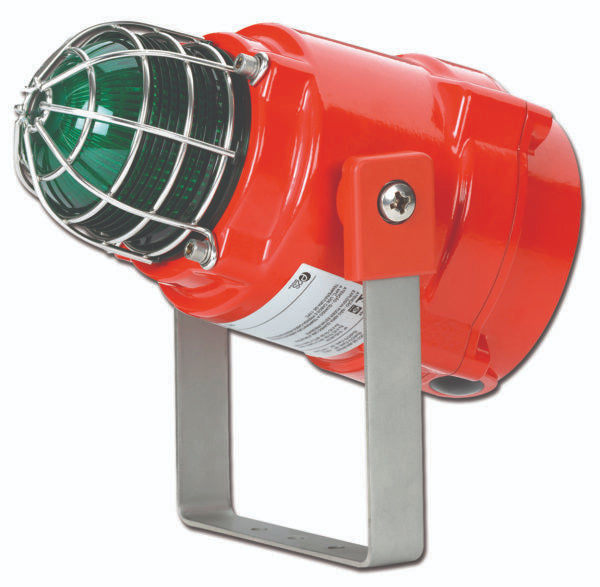

EXB101R – E2S EXD B10 Xenon Beacon (12V / 24V DC | 10 or 15 Joule Flash | ATEX & IECEx Certified | Zone 1/2)

The EXB101R is a high-intensity, Explosion-Protected Xenon beacon, offering 10 or 15 Joule flash output for maximum visual performance in hazardous gas environments. Designed for use in Zone 1 and Zone 2 areas, it’s the ideal solution for large-scale outdoor alerts, perimeter signalling, and evacuation notifications where audible alarms alone aren’t enough.

With dual-voltage support (12V or 24V DC) and full ATEX, IECEx, and INMETRO certification, the EXB101R delivers dependable light signalling in mission-critical locations — from petrochemical plants to offshore rigs.

⚡ Key Benefits:

• ATEX, IECEx & INMETRO certified – fully compliant for Zone 1/2 hazardous gas areas

• Up to 15 Joules of flash energy – for long-range visibility in extreme environments

• 12V or 24V DC operation – easy integration into backup systems or low-voltage installations

• Durable flameproof housing – rugged, sealed, and corrosion-resistant

• IP66 ingress protection – protected against dust, water jets, and marine conditions

• Colour options for zoning or status – Red, Amber, Blue, Green, Clear

🔧 Technical Specifications:

• Model Code: EXB101R

• Voltage: 12V or 24V DC

• Flash Energy: 10 or 15 Joules (selectable)

• Flash Rate: 1 Hz (default)

• Lens Colour Options: R, A, B, G, C

• Certifications: ATEX / IECEx / INMETRO – Zone 1 & 2

• Housing Material: Flameproof alloy with polycarbonate lens

• Ingress Protection: IP66

• Cable Entries: 2 × M20

• Operating Temp: -40°C to +70°C

🛠 Ideal For:

• Offshore evacuation points

• Large tank farms and fuel depots

• Chemical blending and mixing stations

• Gas processing and compressor sites

• Industrial sites requiring high-intensity visual alerts

⚠️ Install with certified Ex-rated cable glands and barrier systems to ensure full zone compliance.
