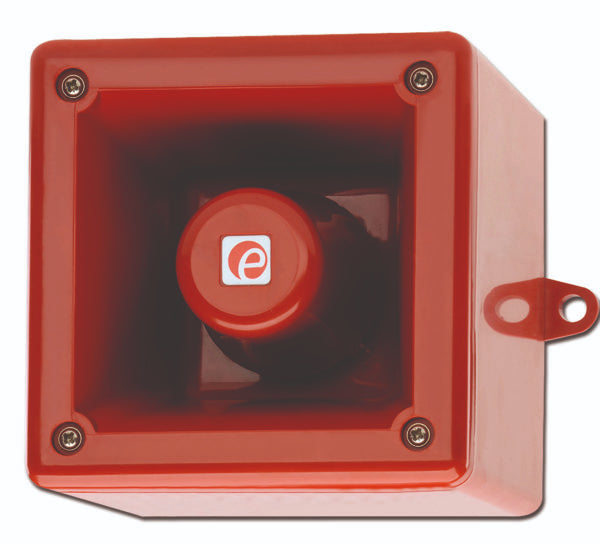

ESY8220 – E2S A112 Ultra-Loud Sounder (24–260V AC)

The ESY8220 is the high-output AC variant of the formidable E2S A112 series, engineered for environments where performance can’t be compromised. With a massive 119dB output, this sounder slices through industrial noise and is ideal for evacuation alerts, security breaches, and fault warnings in large, high-traffic or high-risk areas.

Operating on a wide 24–260V AC range, and equipped with 45 user-selectable tones and 3-stage alert functionality, the ESY8220 gives you both volume and versatility – all housed in a weatherproof, IP65-rated enclosure.

⚡ Key Benefits:

• Ultra-loud 119dB alert – ensures clear warnings in the most demanding conditions

• AC voltage range: 24–260V AC – wide compatibility for industrial and commercial power systems

• 45 tone options with 3-stage alarm function – supports priority-based signalling

• Weather-sealed to IP65 – perfect for indoor or outdoor installations

• Built for extremes – handles temperature fluctuations, dust, and water jets

• Solid-state reliability – no moving parts, low maintenance

🔧 Technical Specifications:

• Model Code: ESY8220

• Voltage: 24–260V AC

• Sound Output: 119dB @ 1m

• Tone Selection: 45 tones

• Alarm Stages: 3 (via external trigger)

• Current Draw: Approx. 30–50mA

• Ingress Protection: IP65

• Material: UV-stabilised polycarbonate housing

• Mounting: Surface-mount with bracket included

• Operating Temp: -25°C to +55°C

🛠 Ideal Use Cases:

• Fire and evacuation systems

• Security alerts across large buildings

• Transport terminals and logistics hubs

• Marine and offshore applications (AC power)

• Public address and emergency warning points

⚠️ Note: This is the AC-powered version of the A112 series. Need a DC version? See the ESY8024.
