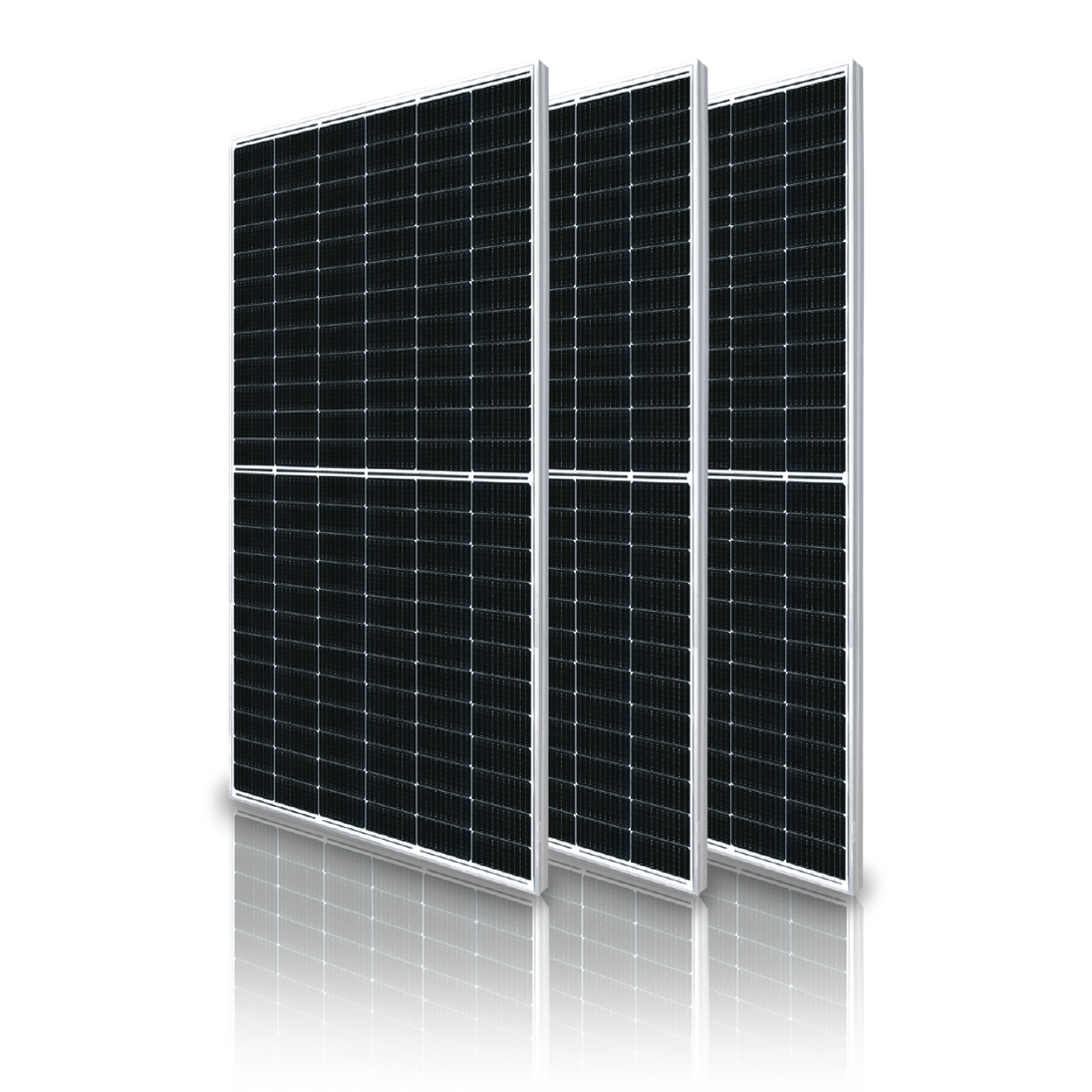

JA Solar 460W Panel – JAM72S20-460/MR

Power up your solar energy system with the JA Solar 460W Panel, model JAM72S20-460/MR. This high-efficiency solar panel is designed with advanced PERC (Passivated Emitter and Rear Cell) technology and a half-cell configuration to deliver superior performance, making it an excellent choice for residential, commercial, and utility-scale installations. The panel’s robust construction ensures long-term durability, even in the most challenging environments.

Key Features:

• Maximum Power Output: 460W, providing high energy yield for larger installations
• High Efficiency: Module efficiency of up to 20.7%, maximising energy capture in a compact footprint
• Advanced Technology: Features PERC half-cell technology, enhancing energy capture, reducing losses, and improving performance, particularly under partial shading conditions
• Durability: Built to withstand tough environmental conditions with a mechanical load capacity of up to 5400 Pa for snow load and 2400 Pa for wind load
• Low Degradation: Offers a first-year power degradation of no more than 2%, with an annual degradation of just 0.55% thereafter, ensuring long-term performance and reliability
• Temperature Coefficient: With a temperature coefficient of -0.35%/°C, this panel maintains excellent performance even in high-temperature conditions

Electrical Specifications:

• Optimum Operating Voltage (Vmp): Approximately 41.8V
• Optimum Operating Current (Imp): Approximately 11.01A
• Open Circuit Voltage (Voc): Approximately 49.8V
• Short Circuit Current (Isc): Approximately 11.71A
• Operating Temperature Range: -40°C to +85°C
• Maximum System Voltage: 1500V DC (IEC/UL)

Mechanical Characteristics:

• Dimensions: Typically 2112 x 1052 x 35 mm
• Weight: Approximately 25 kg
• Front Cover: 3.2 mm tempered glass with anti-reflective coating, enhancing light absorption and providing protection against environmental impacts
• Frame: Anodised aluminium alloy, offering strong resistance to corrosion and ensuring the panel's longevity
• Junction Box: IP68 rated, providing excellent protection against water and dust ingress, ensuring reliable performance in all weather conditions
• Cable Length: 1200 mm for both positive and negative leads, allowing flexible installation options

Invest in the JA Solar 460W Panel (JAM72S20-460/MR) for a reliable, high-performance solution that maximises your solar energy output, ensuring efficiency and sustainability for years to come. Start your journey to clean energy today!
