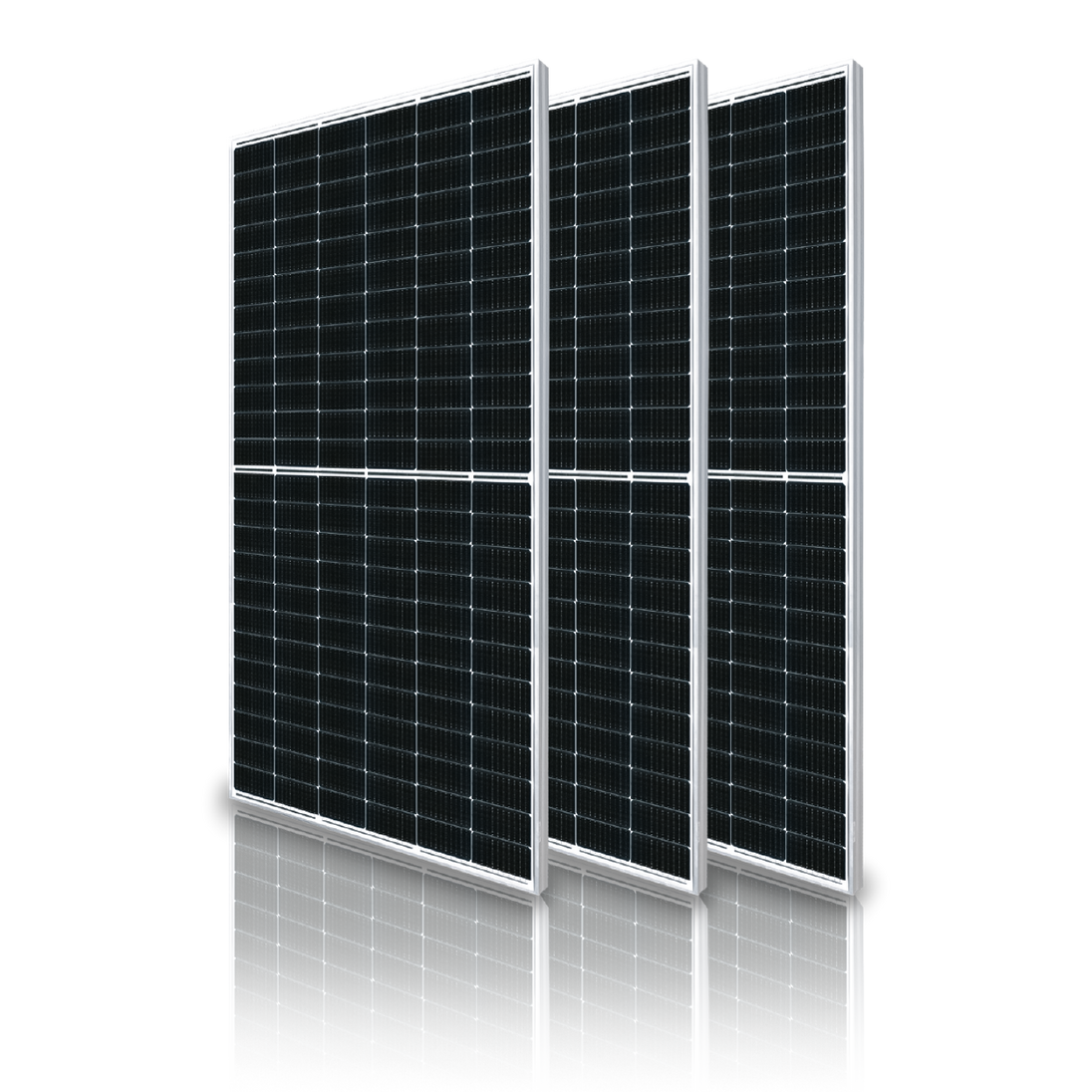

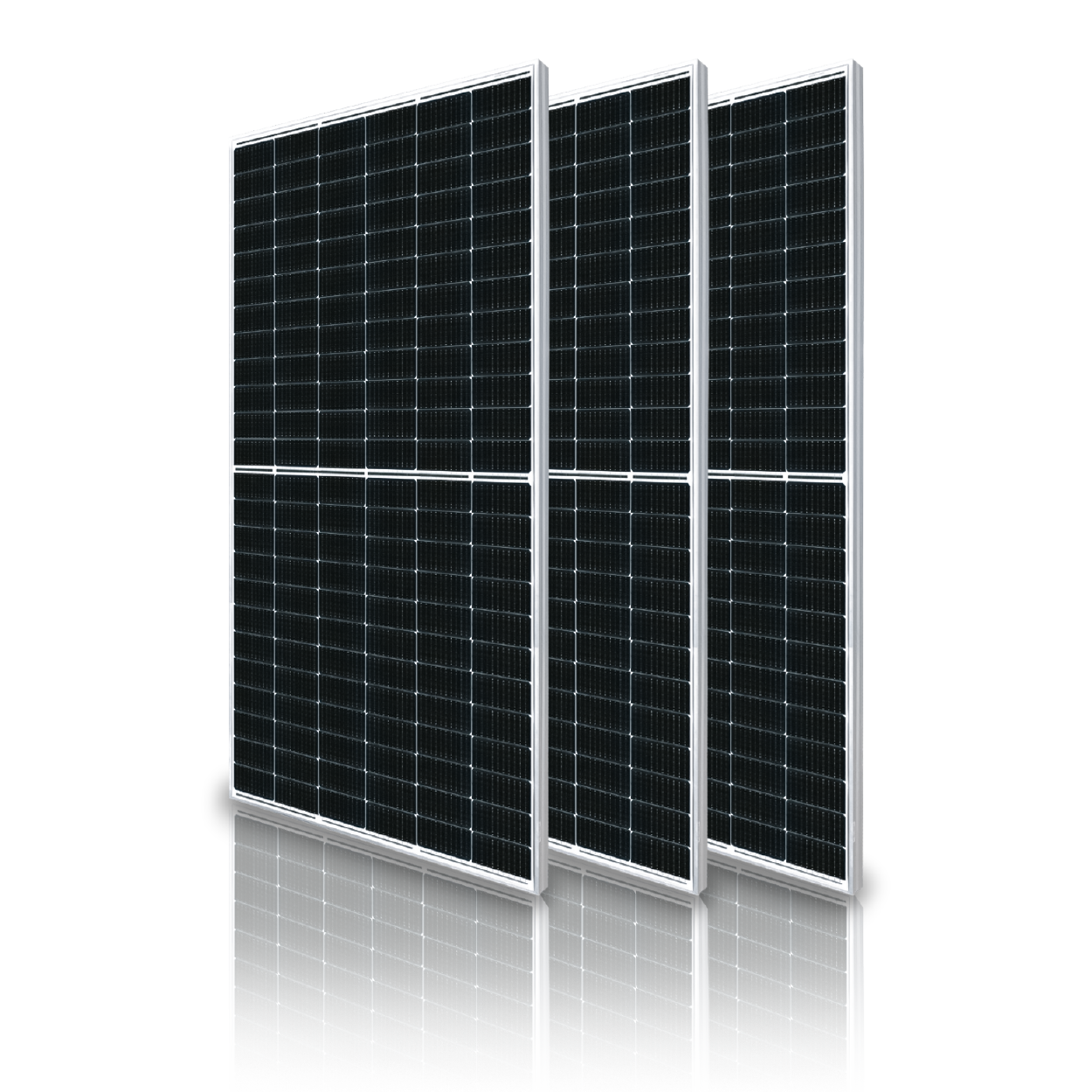

JA Solar 565W Panel – JAM72S30-565/MR

Elevate your solar energy capabilities with the JA Solar 565W Panel, model JAM72S30-565/MR. This high-efficiency solar module is equipped with advanced PERC half-cell technology, making it ideal for large-scale residential, commercial, and utility installations. Designed to deliver superior energy output and durability, this panel ensures reliable performance even in challenging conditions.

Key Features:

• Maximum Power Output: 565W, providing significant energy yield for extensive solar installations
• High Efficiency: Module efficiency of up to 21.5%, maximising energy conversion and minimising space requirements
• Advanced Technology: PERC half-cell design enhances performance, reduces shading impact, and increases light capture for optimal energy production
• Durability: Engineered to withstand severe environmental conditions, with a mechanical load capacity of up to 5400 Pa for snow and 2400 Pa for wind
• Low Degradation: First-year power degradation of no more than 2%, with annual degradation capped at 0.55%, ensuring long-term reliability
• Temperature Coefficient: Excellent temperature coefficient of -0.35%/°C, maintaining high performance in hot climates

Electrical Specifications:

• Optimum Operating Voltage (Vmp): Approximately 41.9V
• Optimum Operating Current (Imp): Approximately 13.48A
• Open Circuit Voltage (Voc): Approximately 50.1V
• Short Circuit Current (Isc): Approximately 14.20A
• Operating Temperature Range: -40°C to +85°C
• Maximum System Voltage: 1500V DC (IEC/UL)

Mechanical Characteristics:

• Dimensions: Approximately 2333 x 1134 x 30 mm
• Weight: Approximately 28.6 kg
• Front Cover: 3.2 mm tempered glass with anti-reflective coating, ensuring high durability and light absorption
• Frame: Anodised aluminium alloy, providing robust protection against corrosion and environmental damage
• Junction Box: IP68 rated, offering superior protection against water and dust ingress for reliable, long-term performance
• Cable Length: Typically 1200 mm, allowing flexibility in installation

Invest in the JA Solar 565W Panel (JAM72S30-565/MR) for a reliable, high-efficiency solution that maximises your solar energy output, ensuring long-term performance and sustainability. Step into the future of clean energy today!
