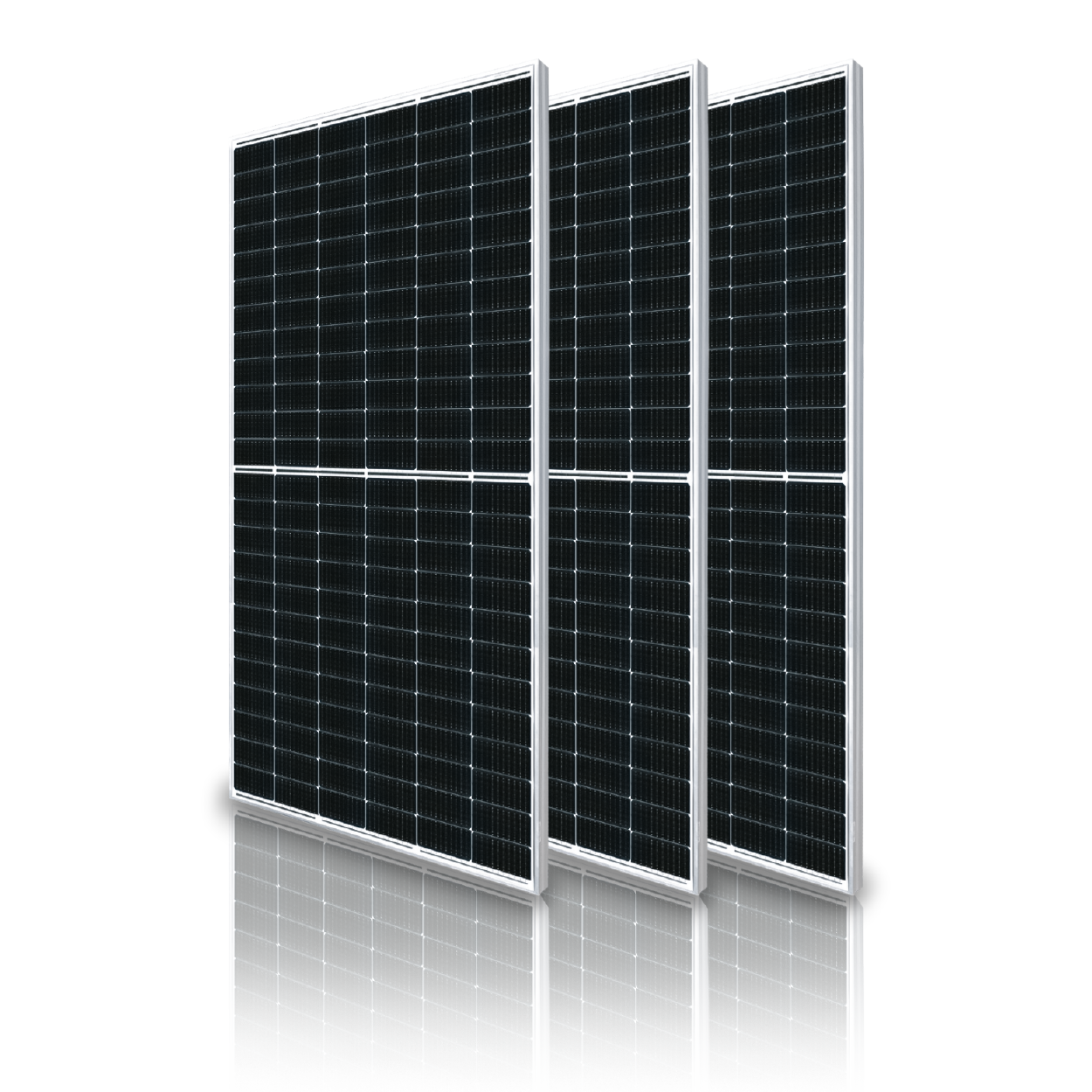

Seraphim Bi-Facial 560W Solar Panel (SRP-560-BMA-BG)

Unlock the ultimate in solar energy generation with the Seraphim Bi-Facial 560W Solar Panel from the SRP-560-BMA-BG series. Designed to capture sunlight from both sides, this panel maximises energy output, making it a top choice for large-scale utility and commercial installations.

Key Features

• Bi-Facial Technology: Captures sunlight from both the front and rear sides, significantly boosting overall energy generation.
• High Efficiency: Achieves a module efficiency of 21.68%, utilising advanced 182mm silicon wafers, multi-busbar, and half-cut cell technologies.
• Superior Durability: Built to withstand harsh environments, including sand, acid, salt, and hailstones. Certified to endure 2400 Pa wind load and 5400 Pa snow load.
• Optimised Performance: Reduces power loss from shading and offers excellent performance in low light conditions.
• Robust Quality Assurance: Undergoes three rounds of EL testing to ensure superior quality and reliability.
• Comprehensive Warranty: Includes a 15-year product warranty and a 30-year linear power output warranty, guaranteeing 84.95% performance at the end of the warranty period.

Technical Specifications

• Maximum Power (Pmp): 560W
• Open Circuit Voltage (Voc): 49.90V
• Short Circuit Current (Isc): 14.21A
• Maximum Power Voltage (Vmp): 42.56V
• Maximum Power Current (Imp): 13.16A
• Module Efficiency: 21.68%
• Power Tolerance: 0 to +4.99W
• Maximum System Voltage: 1500V DC
• Maximum Series Fuse Rating: 25A

Mechanical Specifications

• Dimensions: 2278 x 1134 x 30 mm
• Weight: 32.0 kg
• Solar Cells: PERC Mono crystalline (144 pcs)
• Front/Back Glass: 2.0mm AR coating semi-tempered glass, low iron
• Frame: Black anodised aluminium alloy
• Junction Box: IP68, 3 diodes
• Output Cables: 4.0mm², 250mm(+)/350mm(-) or customised length
• Mechanical Load: Front side 5400 Pa / Back side 2400 Pa

Benefits

• Increased Energy Yield: Bi-facial design enhances energy capture, increasing power generation by up to 30%.
• Optimal ROI: Ideal for utility and commercial projects, reducing Balance of System (BoS) costs and improving Return on Investment (ROI).
• Proven Reliability: Validated by PVEL for extreme environmental conditions, ensuring long-term performance.
• Anti-PID Technology: Protects against Potential Induced Degradation, ensuring stable performance over time.
• Extended Warranty: 30-year linear power output warranty provides peace of mind and long-term value.

Certifications and Standards

• Quality Management: ISO9001, ISO14001, ISO45001
• Product Certification: Verified for performance and reliability

Maximise your solar energy potential with the Seraphim Bi-Facial 560W Solar Panel. Invest in cutting-edge technology for superior efficiency and durability. Take your energy generation to the next level—order now!
