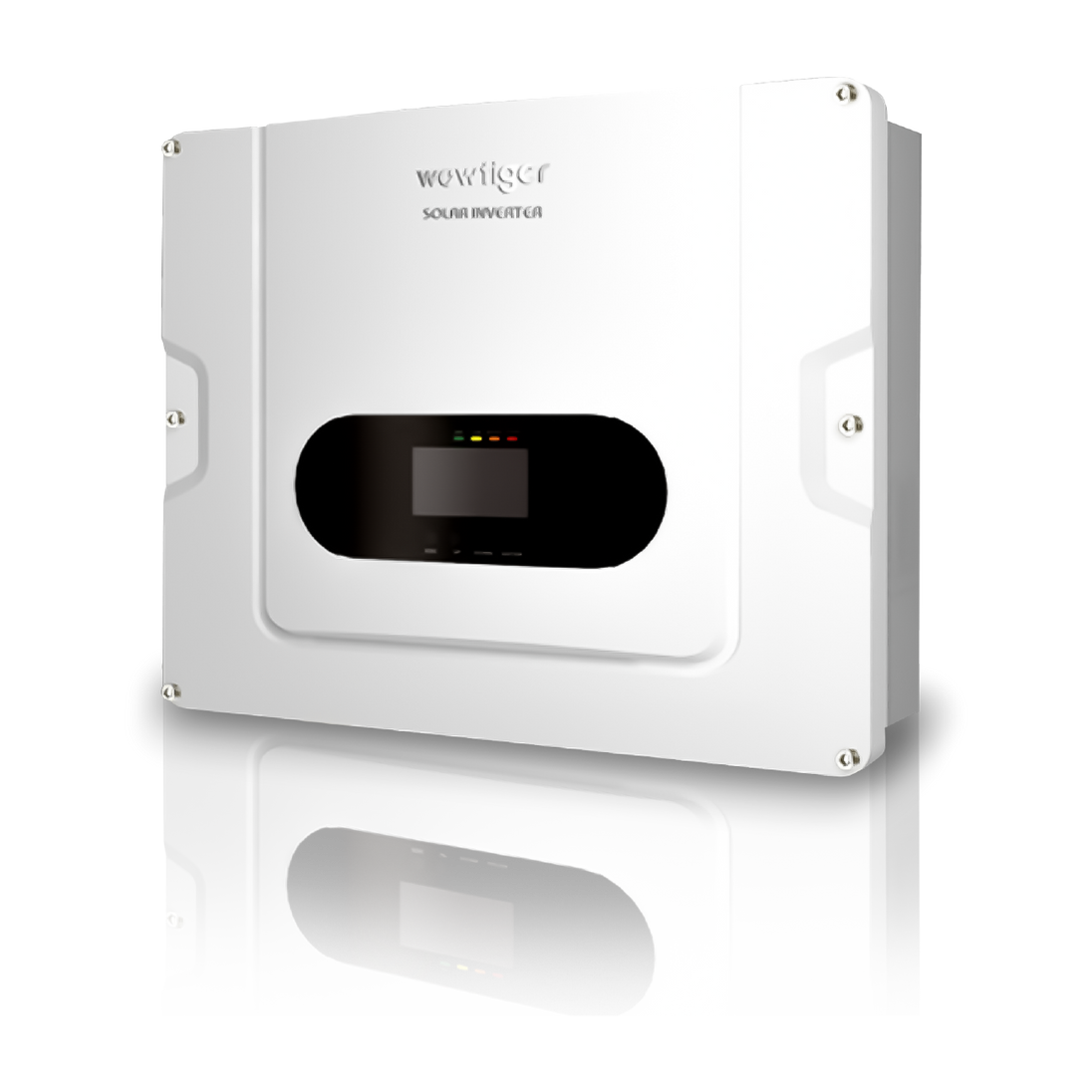

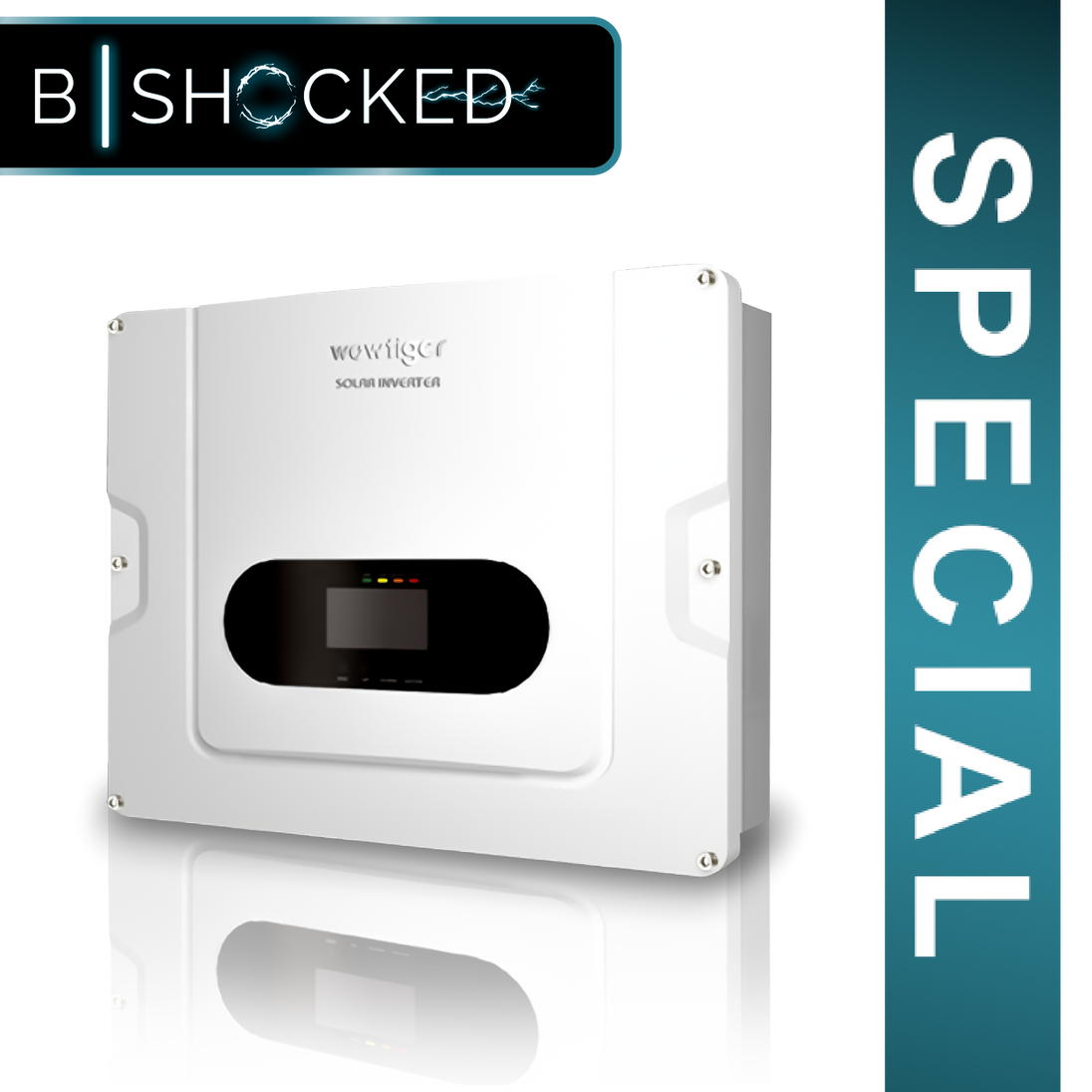

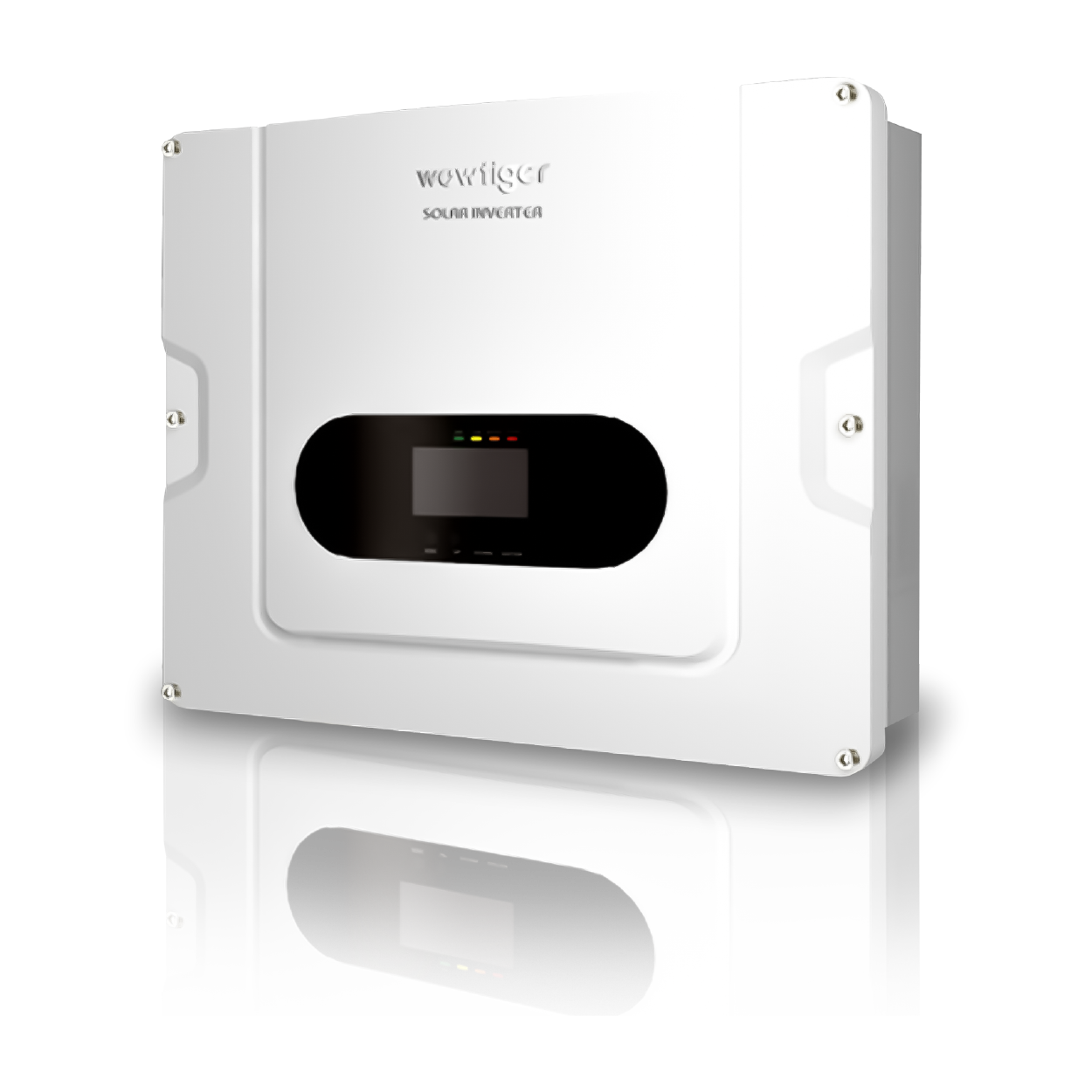

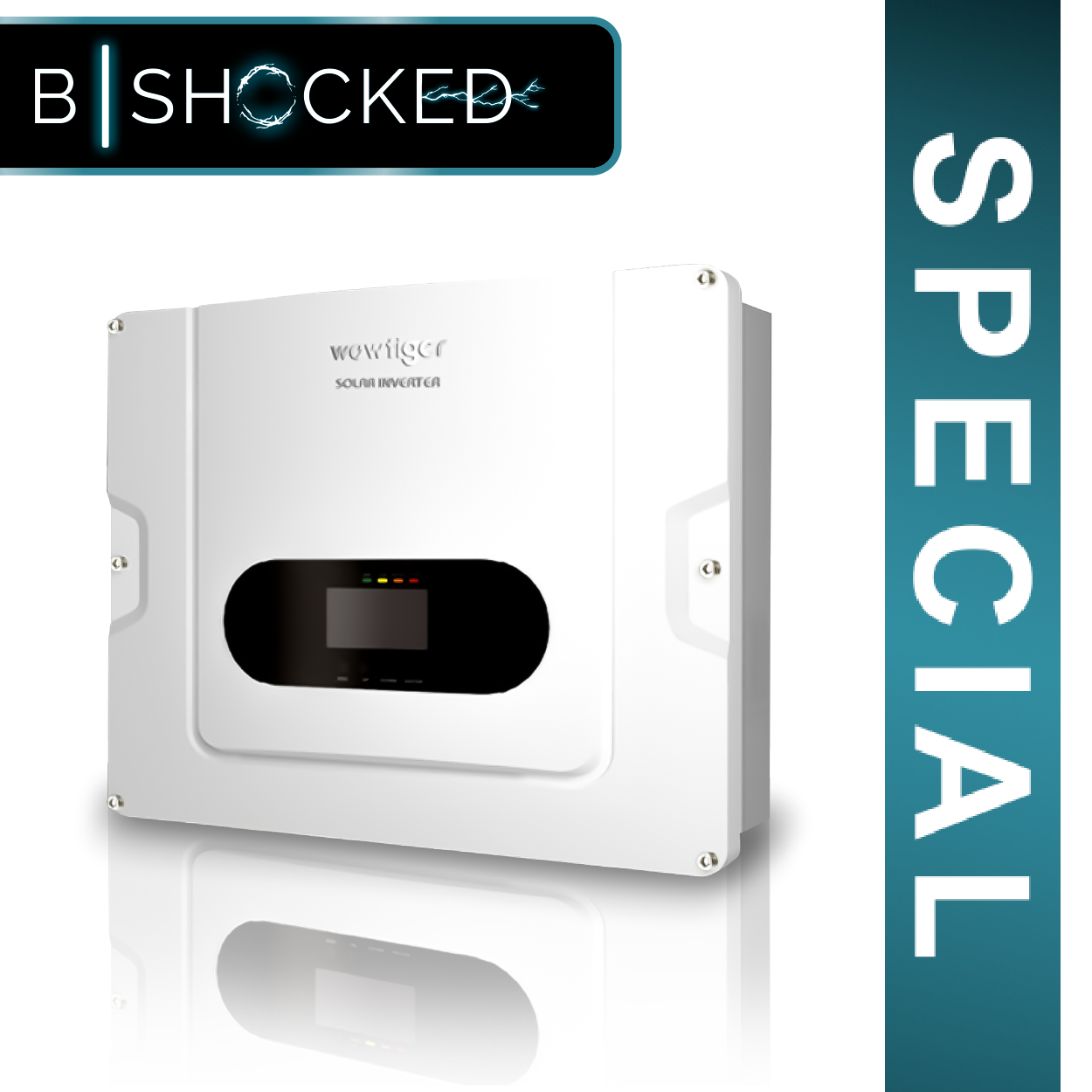

HE Series 3KVA Wall-Mounted Inverter

Model: HE Series
Nominal Capacity: 3KVA
Inverter Type: Wall-Mounted
Parallel Connect: Max Parallel Connection Allowed - /

Electrical Parameters:

  • Input Voltage: 170~280Vac
  • Frequency: 40~70Hz, Default
  • Utility Mode: Overload/Short Circuit Protection
    • The Bypass Circuit Breaker: 20 A
  • Maximum Efficiency: >93%
  • Conversion Time (Bypass and Inverter): <10mS
  • Biggest Bypass Overload Current: 20A
  • Output Voltage Waveform: Pure Sine Wave
  • Rated Output Power: 3KVA
  • Power Factor: 0.9PF
  • Inverter Mode:
    • Rated Output Voltage (Vac): 208/220/230/240 Vac (Settable) Default 230V
    • Output Frequency Range (Hz): 50.0 / 60.0 Hz (Settable) Default 50 Hz
    • Maximum Efficiency: >93%
    • Overload Capacity: 1min@102%~110% Load, 10s@110%~130% Load, 3s@130%~150% Load, 0.2s@>150% Load
  • Battery Voltage: 25.6V
  • Compatible Battery Type: Lead-acid/lithium.

Charging:

  • Utility Charging Maximum Charging Current (Can Be Set): 50A
  • Type of Controller (PV): PWM
  • Largest PV Open Circuit Voltage: 85V
  • PV Operating Voltage Range: 30-80V
  • Largest PV Input Current: 50A
  • Charging Largest PV Power Input: /
  • Solar Charging Current Range (Can Be Set): 10~50A
  • Biggest Mixed Charging Current (PV+AC): The Biggest Mixed Charging Current (Can Be Set): 100A

Protection Functions:

  • Over-voltage and low-voltage protection, overload protection, short-circuit protection, and over-temperature protection of lithium batteries

Environmental Parameters:

  • Working Temperature Range: -10°C-50°C
  • Storage Temperature Range: -15~60°C
  • Humidity Range: 20%~95% (No condensing)

Specifications:

  • Noise Level: ≤50db
  • Heat Dissipation: Forced air cooling
  • Display Mode: LCD
  • BMS Communication Method: 485
  • Monitoring Method (Optional): WiFi/4G
  • Product Size (LWH) mm: 386x116x331
  • Packing Size (LWH) mm: /
  • Net Weight(kg): 7
  • Gross Weight(kg): 9

Description:
The HE Series 3KVA Wall-Mounted Inverter combines efficiency and reliability, providing a seamless power supply. With advanced protection features and flexible charging options, it's the perfect choice for your energy needs. #HESeries #WallMountedInverter #BShockedElectrical #PowerEfficiency
