Electrical Data | STC*

Nominal Max. Power (Pmax): 545 W

Opt. Operating Voltage (Vmp): 41.5 V

Opt. Operating Current (Imp): 13.14 A

Open Circuit Voltage (Voc): 49.4 V

Short Circuit Current (Isc): 13.95 A

Module Efficiency: 21.2 %

Operating Temperature: –40 °C ~ +85 °C

Max. System Voltage: 1500 V (IEC/UL) or 1000 V (IEC/UL)

Module Fire Performance: TYPE 29 (UL 61730) or CLASS C (IEC 61730)

Max. Series Fuse Rating: 30 A

Application Classification: Class A

Electrical Data | NMOT*

Nominal Max. Power (Pmax): 409 W

Opt. Operating Voltage (Vmp): 38.9 V

Opt. Operating Current (Imp): 10.52 A

Open Circuit Voltage (Voc): 46.7 V

Short Circuit Current (Isc): 11.25 A

Mechanical Data

Cell Type: Mono-crystalline

Cell Arrangement: 144 [2 × (12 × 6)]

Dimensions: 2266 × 1134 × 35 mm (89.2 × 44.6 × 1.38 in)

Weight: 32.2 kg (71.0 lbs)

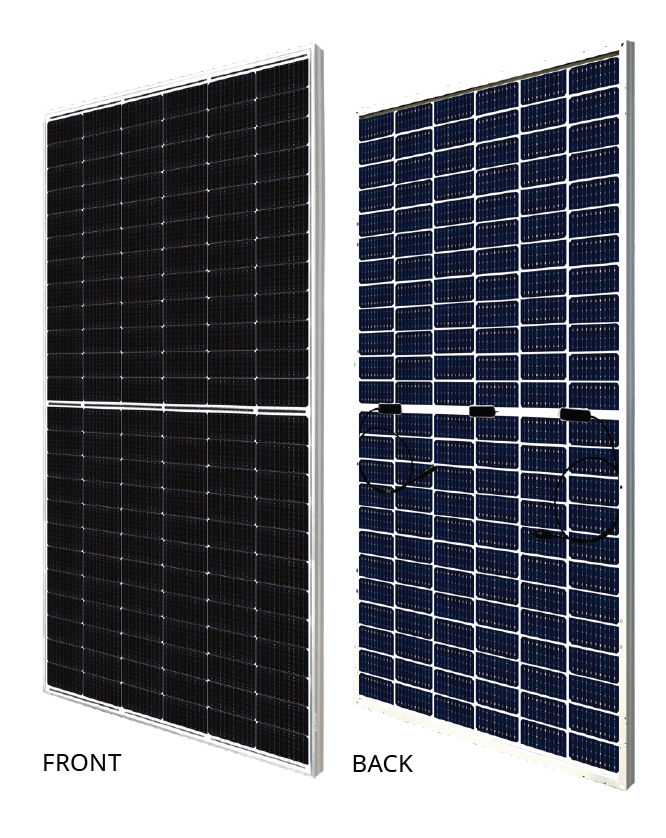

Front/Back Cover: 2.0 mm heat-strengthened glass

Frame: Anodized aluminium alloy

J-Box: IP68, 3 bypass diodes

Cable: 4.0 mm² (IEC), 12 AWG (UL)

Cable Length (Including Connector): 410 mm (16.1 in) (+) / 290 mm (11.4 in) (–) or customized length*

Connector: T4-PC-1 (IEC 1000 V) or PV-KST4/xy-UR, PV-KBT4/xy-UR (IEC 1000 V) or T4-PC-1, T4-PPE-1 (IEC 1500 V) or PV-KST4-EVO2/XY, PV-KBT4-EVO2/XY (IEC 1500 V) or UTXCFA4AM, UTXCMA4AM (IEC 1500 V)

*Under Standard Test Conditions (STC) of irradiance of 1000 W/m², spectrum AM 1.5 and cell temperature 25 °C.

*Under Nominal Module Operating Temperature (NMOT), irradiance 800 W/m², spectrum AM 1.5, ambient 20 °C, wind 1 m/s.
