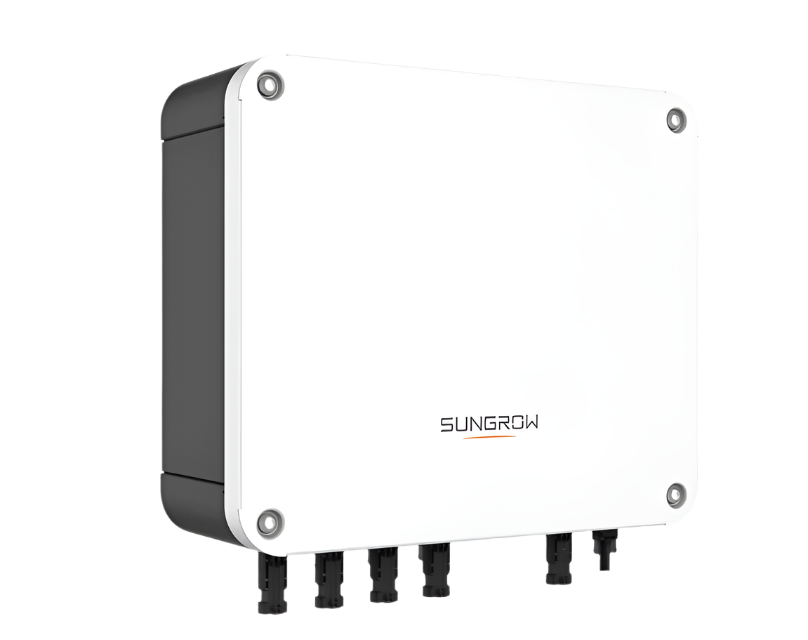

🔋 Sungrow SBH Battery Parallel Box – SJR050-04
Scalable Power for Every Home.
The SJR050-04 is a combiner box designed to parallel-connect up to four SBH high-voltage battery modules, allowing homeowners to increase storage capacity easily and safely. It provides overcurrent protection, reliable communication, and weather-resistant design.
✅ Key Features:
• Parallel Connection for Up to 4 SBH Batteries
• Max Input Voltage: 600 Vdc | Max Current: 30 A
• Built-in Fuses for Short-Circuit Protection
• Plug-and-Play Connectors – MC4 (battery) & Sunclix (PCS)
• Communication Ports: RJ45, CAN, RS485
• IP65 Rated for Indoor & Outdoor Use
• No Cooling Fan – Silent, maintenance-free operation
⚙️ Technical Specifications:
• Inputs: 4 x Battery Channels
• Output: 1 to PCS/Inverter
• Dimensions: 350 × 336 × 125 mm
• Weight: 5.6 kg
• Operating Temp: -20°C to +50°C
• Relative Humidity: 0–95% (non-condensing)
• Altitude: ≤2000m
• Mounting: Wall-mounted
• Ingress Protection: IP65
🛒 Ready to boost your battery bank?
👉 Add the SJR050-04 and build your smart energy future.
