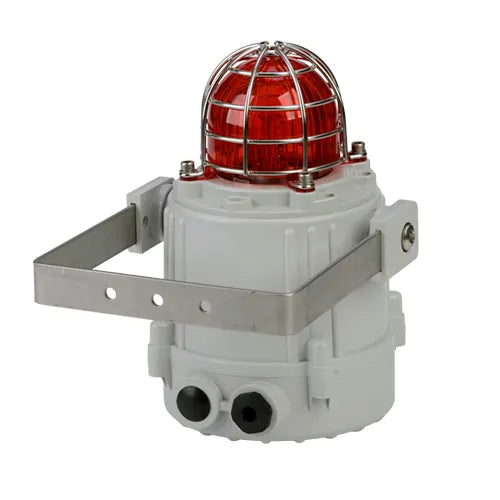

⚓ EMC114R – E2S Marine LED Combo Unit (Multi-Voltage DC/AC | 112dB Sounder + Multi-Mode LED Beacon | IP66)

The EMC114R is a cutting-edge marine-grade combination unit, integrating a reliable 112dB A105 sounder with a high-visibility multi-mode LED beacon — all in a sealed, corrosion-resistant enclosure. Designed for multi-voltage DC or AC input, it provides flexible installation options across a wide range of vessels and offshore platforms.

With long-life LED efficiency, selectable light modes (steady, flash, pulse), and 32 user-selectable tones, the EMC114R delivers clear, compliant alerts you can trust — day or night, in any weather.

⚡ Key Benefits:
• 112dB sound output – audible performance that carries across open water and noisy engine rooms
• Multi-mode LED beacon – choose steady, flashing, or pulsing light output
• Multi-voltage input (DC/AC) – flexible integration into various marine power systems
• 32 tone options + 3 alarm stages – assign tones for fire, fault, ESD, or abandon ship alerts
• IP66-rated housing – fully sealed against water, salt, and dust
• Energy-efficient & low maintenance – LED technology reduces power draw and service requirements

🔧 Technical Specifications:
• Model Code: EMC114R
• Voltage: Multi-voltage AC/DC (e.g. 10–60V DC or 110/220V AC – confirm variant)
• Sound Output: 112dB @ 1m
• Tone Selection: 32 tones
• Alarm Stages: 3
• Beacon Output: High-intensity LED (multi-mode)
• Beacon Modes: Steady, Flash, Pulse
• Ingress Protection: IP66
• Lens Colours: Red, Amber, Blue, Green, Clear
• Material: UV-resistant housing, sealed polycarbonate lens
• Cable Entries: 2 × M20
• Operating Temp: -25°C to +55°C

🛠 Ideal For:
• Multi-zone marine alerting (visual + audible)
• Offshore alarm points with AC/DC variation
• Engine rooms, pump stations, or bridge alert panels
• General alarms, fire systems, and evacuation signals
• Coastal infrastructure and platform safety zones

🛠 Choose beacon colour and voltage variant at checkout. Pre-wired for simple installation.

⸻

🛒 Modern, maintenance-free marine signalling.
Add the EMC114R to your safety system and combine LED brilliance with dependable audio output — all in one smart, sealed solution.
