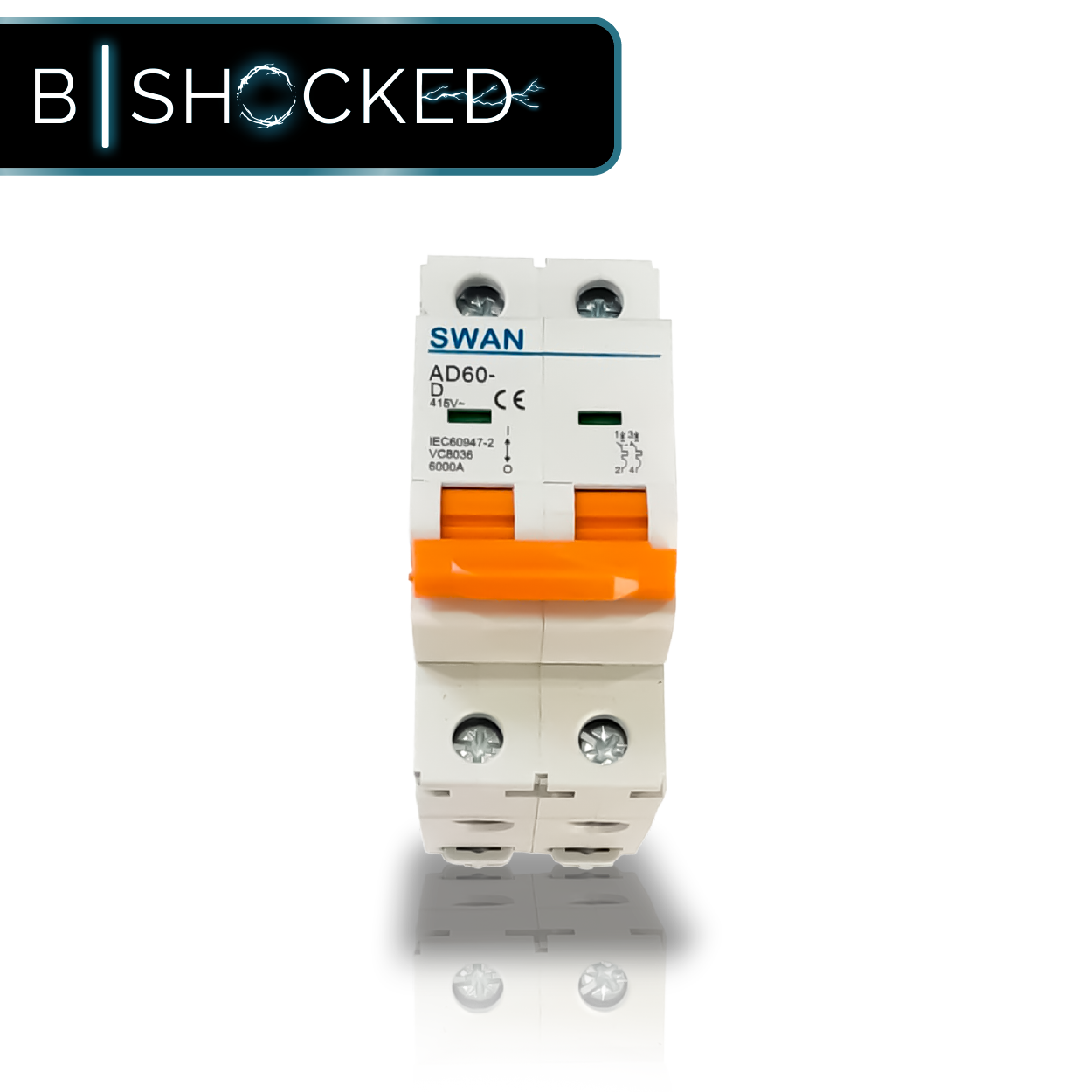

Ensure your electrical systems are well-protected with the Swan Electric 6Ka 2P 25A Din-Rail D-Curve Mini Circuit Breaker. This breaker is designed to provide reliable performance and robust protection, making it suitable for both residential and commercial applications.
Key Specifications:
- Rated Voltage: 230/400V AC
- Current Rating: 25A
- Breaking Capacity: 6kA
- Curve Type: D-Curve
- Configuration: 2 Poles
- Compliance: IEC 60947-2
- Mounting: DIN Rail EN 60715 (35mm)
- Protection Degree: IP20
Features:
- Thermo-magnetic Trip: Provides effective protection against overloads and short circuits.
- High Durability: Electrical life expectancy of 4,000 operations and mechanical life expectancy of 10,000 operations.
- Wide Operating Temperature Range: -30°C to +60°C
Secure your electrical systems with reliable protection. Order the Swan Electric 6Ka 2P 25A Din-Rail D-Curve Mini Circuit Breaker now!
Ensure your electrical systems are well-protected with the Swan Electric 6Ka 2P 25A Din-Rail D-Curve Mini Circuit Breaker. This breaker is designed to provide reliable performance and robust protection, making it suitable for both residential and commercial applications.
Key Specifications:
- Rated Voltage: 230/400V AC
- Current Rating: 25A
- Breaking Capacity: 6kA
- Curve Type: D-Curve
- Configuration: 2 Poles
- Compliance: IEC 60947-2
- Mounting: DIN Rail EN 60715 (35mm)
- Protection Degree: IP20
Features:
- Thermo-magnetic Trip: Provides effective protection against overloads and short circuits.
- High Durability: Electrical life expectancy of 4,000 operations and mechanical life expectancy of 10,000 operations.
- Wide Operating Temperature Range: -30°C to +60°C
Secure your electrical systems with reliable protection. Order the Swan Electric 6Ka 2P 25A Din-Rail D-Curve Mini Circuit Breaker now!
